FOUR WAY PNEUMATIC BALL VALVE
- Port size
- 1/2"~16" (DN15~DN400)
- Pressure
- CL150-CL2500
- Structure
- 4 way:T Port or L port,X port
- Medium
- Water,steam,oil,gas
- Temperature
- -29～150℃,-40～450℃
- Body material
- A105 LF2 F304 F316 F316L or others
- Connection
- Flange or others
- Feature
- 4 way ball valve manufacturer
Product Description
Four way pneumatic ball valve is a four-way four seat ball valve with "X" type flow channel. Rotating 90 ° can switch the flow direction of the two media at the same time. The worm gear four-way ball valve is convenient and fast, realizing the effect of one valve for multiple purposes., The four-way ball valve is applicable to the circulating system of liquid, gas, dust, slurry and medium containing solid particles, such as the forward and reverse circulating water supply system of power plant unit cooler.
Standards Compliance
» Design and manufacture: GB/T12237-1989, API608
» Inspection and test: gb/t13927-1992, API598
» Flange connection: JB/T79.1,ASME/ANSI16.5
» Port: Full Port
» Connection Ends: Flange
» Working Temp: -29~180ºC, or according to customer requirements for different industry.
» Suitable Medium: Water, Sea water,Natural Gas, Oil and some corrosive liquid
» Operation: Handle operated, Locking device is option
» Inspection & Testing: According to API598

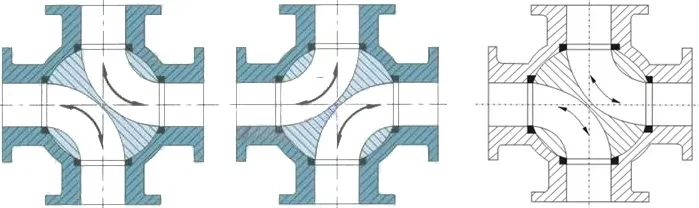

Structure diagram
