3PC FLANGE DIRECT MOUNT BALL VALVE

Product description Three piece high platform flange ball valve adopts two-piece split structure design, American standard ball valve is designed according to ASME B16.34, structure length: ASME B16.
Port size
1/2"~5" (DN15~DN125)
Pressure
PN16~PN40, 150LB, 300LB
Structure
Floating, Full bore,3PC
Medium
Water,steam,oil,gas
Temperature
-29~150℃
Body material
WCB,CF8,CF8M,CF3,CF3M etc.
Connection
Flange
Feature
ISO 5211 Mounting Pad for Different Operation

Product description

Three piece high platform flange ball valve adopts two-piece split structure design, American standard ball valve is designed according to ASME B16.34, structure length: ASME B16.10, flange standard: ASME B16.5. American standard three piece high level billiard ball valve has fireproof structure, and the flange ball valve adopts the platform design of ISO5211 direct installation actuator; There is an anti-static device between the spheres; Explosion proof design of valve rod.

Standards Compliance

» Blow-out Proof stem/Full port

» Design and Manufacture: ASME B16.34, GB/T 12237

» Face to face(end to end): ASME B16.10, GB/T 12221

» Flanged connection: ANSI B16.5, GB/T 9113

» Wall Thickness: ASME B16.34

» Test and inspection: GB/T 13927, API 598

» Fire protection design test: API 607;

Materials of main parts

No

Part Name

Materail

1

BODY

WCB, CF8, CF8M

2

CAP

WCB, CF8, CF8M

3

BALL

SS304, SS316

4

NUT

A194-8

5

GASKET

SUS304

6

SEAL RING

PTFE/VITON

7

SEAT

PTFE/RPTFE/PPL

8

STEM

SS304, SS316

9

O RING

FKM(VITON)

10

THRUST WASHER

PTFE/RPTFE

11

PACKING

PTFE/GRAFOIL

12

SPRING

SS304

13

STEM NUT

SS304

14

GLAND

SS304

15

HANGLE

SS201

16

POSITIONING ROD

SS304

17

SCREW

SS304

18

NUT

A194 8

19

BOLT

A193 B8

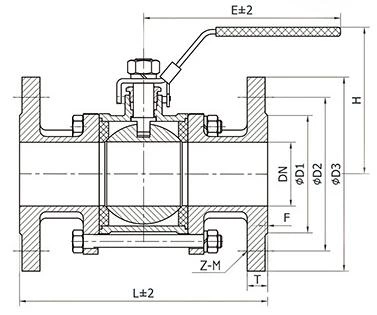

Dimension drawing

3PC FLANGE DIRECT MOUNT BALL VALVE

Dimensions(mm)

Size

d

L

R

C

D

H

H1

E

F

T

□P

N

ØX

ISO5211

1/2"

15

140

34.5

66.7

95

48

76

110

2

14.3

9

4

16

F03-F04

3/4"

20

152

42.9

82.6

115

54

80

110

2

15.9

9

4

19

F03-F04

1"

25

165

50.8

88.9

125

60

90

160

2

17.5

11

4

19

F04-F05

1-1/4"

32

178

63.5

98.4

135

71

102

160

2

19.1

11

4

19

F04-F05

1-1/2"

38

190

73

114.3

155

77.5

114

185

2

20.7

14

4

23

F05-F07

2"

50

216

92.1

127

165

85

122

185

2

22.3

14

8

19

F05-F07

2-1/2"

65

241

104.8

149.2

190

98

168

305

2

25.4

17

8

23

F07-F10

3"

78

282

127

168.3

210

110

178

305

2

28.6

17

8

23

F07-F10

4"

100

305

157.2

200

255

130

198

305

2

31.8

22

8

23

F07-F10

5"

125

400

185.7

235

280

165

234

500

2

35

27

8

23

F12-F14
