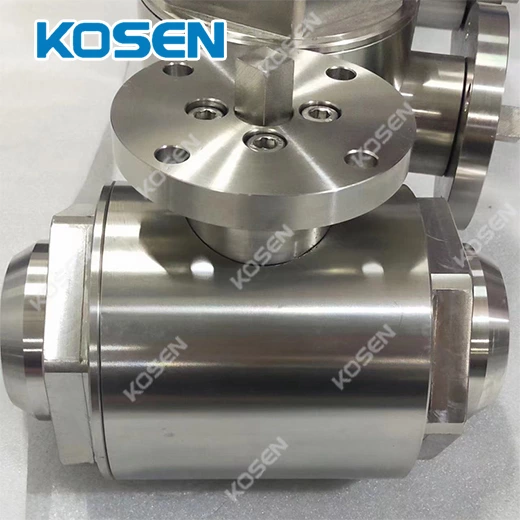

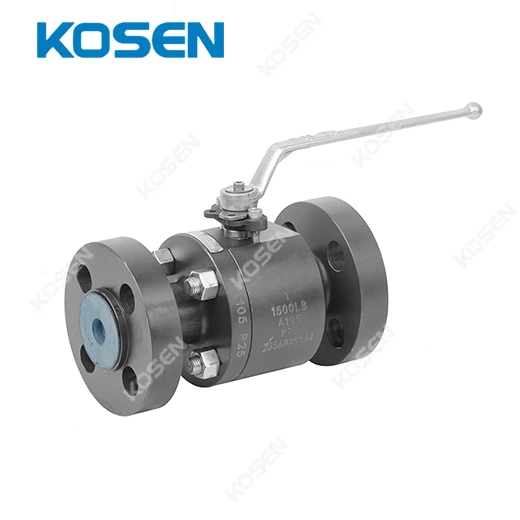

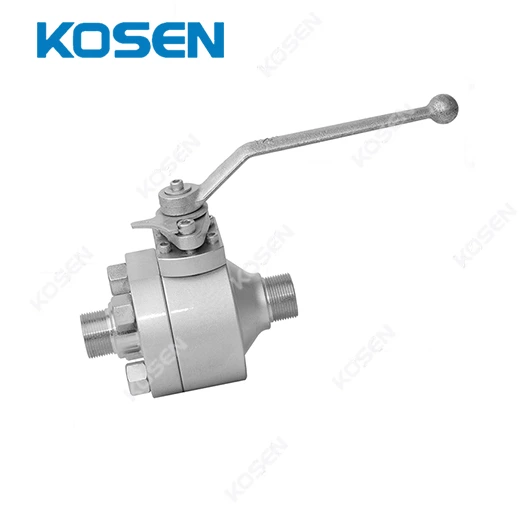

TWO PIECE FORGED STEEL BALL VALVE
- Port size
- 1/2”~2” (DN15~DN50)
- Pressure
- 800Lb, 1500Lb
- Structure
- 2 PIECE BODY
- Medium
- Water,steam,oil,gas
- Temperature
- -20~150ºC, -40～450ºC
- Body material
- A105 LF2 F304 F316 F316L or others
- Connection
- Flange, Thread, SW, BW is optional
- Feature
- For high pressure medium
Product Description
The two-piece floating forged steel ball valve has a long service life because the sealing ring materials such as polytetrafluoroethylene have good self lubrication and small friction loss with the ball. The floating forged steel ball valve has compact structure, reliable sealing, simple structure and convenient maintenance. The sealing surface and spherical surface are often closed, which is not easy to be eroded by the medium. It is easy to operate and maintain. It is suitable for: chemical industry, petroleum, natural gas, metallurgy and other industries, as well as long-distance natural gas transmission pipelines containing hydrogen sulfide medium, many impurities and serious corrosion.
Standards Compliance
» Design and manufacture: BS5351, MSS SP-118
» Scoket Welded Ends: ANSI B16.11; JB/T1751
» Screw Ends: ANSI B1.20.1; JB/T7306
» Butt-welded Ends: ANSI B16.25; JB/T12224
» Flanged Ends: ANSI B16.5; JB79
» Test and inspection: API 598; GB/T13927; JB/T9092
Materials of main parts
|
No |
Part |
Matarial |
|
1 |
BODY |
A105N, LF2, F304, F304L, F316, F316L |
|
2 |
BALL |
F304, F304L, F316, F316L, F51, F53 |
|
3 |
STEM |
F304, F304L, F316, F316L, F51, F53 |
|
4 |
SEAT |
PTFE, RPTFE, PEEK |
|
5 |
GASKET |
GRAPHITE |
|
6 |
PACKING |
GRAPHITE |
|
7 |
GASKET |
GRAPHITE |
|
8 |
LOCATING PIECE |
A238D, SS |
|
9 |
HANDLE |
A238D, SS |
|
10 |
NUT |
SS304 |
|
11 |
STOP PIN |
SS304 |
Dimensions(mm)
|
RB |
FB |
L |
d |
NPT |
SW |
L1 |
H |
W |
Weight |
|||
|
RB |
FB |
RB |
FB |
RB |
FB |
|||||||
|
3/8x1/4 |
1/4 |
68 |
9.5 |
3/8 |
1/4 |
17.6 |
14.2 |
9.6 |
9.6 |
53 |
130 |
1.1 |
|
1/2x3/8 |
3/8 |
68 |
9.5 |
1/2 |
3/8 |
21.8 |
17.6 |
9.6 |
9.6 |
53 |
130 |
1.1 |
|
3/4x1/2 |
1/2 |
73 |
13 |
3/4 |
1/2 |
27.1 |
21.8 |
12.7 |
12.7 |
56 |
130 |
1.3 |
|
1x3/4 |
3/4 |
97 |
17 |
1 |
3/4 |
33.8 |
27.1 |
12.7 |
12.7 |
70 |
160 |
1.9 |
|
11/4x1 |
1 |
105 |
23 |
11/4 |
1 |
42.6 |
33.8 |
12.7 |
12.7 |
80 |
220 |
3.3 |
|
11/2x11/4 |
11/4 |
118 |
30 |
11/2 |
11/4 |
48.7 |
42.6 |
12.7 |
12.7 |
90 |
250 |
4.1 |
|
2x11/2 |
11/2 |
133 |
38 |
2 |
11/2 |
61.2 |
48.7 |
15.9 |
15.9 |
100 |
250 |
5.6 |
|
21/2x2 |
2 |
148 |
48 |
21/2 |
2 |
74.1 |
61.2 |
15.9 |
15.9 |
110 |
290 |
12.2 |
