STEAM HEATING JACKET BALL VALVE

Product Description

The product has good heat and cold insulation characteristics, and the medium flows in a straight line when the valve diameter and pipe diameter reach the same, with low resistance. It is more suitable for liquid medium with easy solidification and high viscosity. At the same time, it can effectively reduce the heat loss of the medium in the pipeline. The integral jacket design can keep heat and cold evenly. The jacket and the outside of the valve body are welded with the jacket nozzle, and the higher pressure of steam or cold water is allowed to be 1MPa. It is mainly used in petroleum, chemical, pharmaceutical, food and other systems to transport high viscosity media that will solidify at room temperature.

Standards Compliance

» Design and manufacturing standards: GB/T12224, ASME B 16.34

» Structural length standard: GB/T 12221-2005, ASME B 16.10

» Connection flange standard: JB/T 79, GB/T 9113, ASME B 16.5

» Pressure and temperature class: GB/T 12224-2005

» Test standard: GB/T 13927-2008, JB/T9092, API 598

» Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"

» Pressure level: PN10~PN100, CL150~CL600

» Design standard: API608, ASME B16.34

» Connection mode: RF, RTJ, BW

» Structure: Single Piece or two pieces Design

» Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve

» Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc

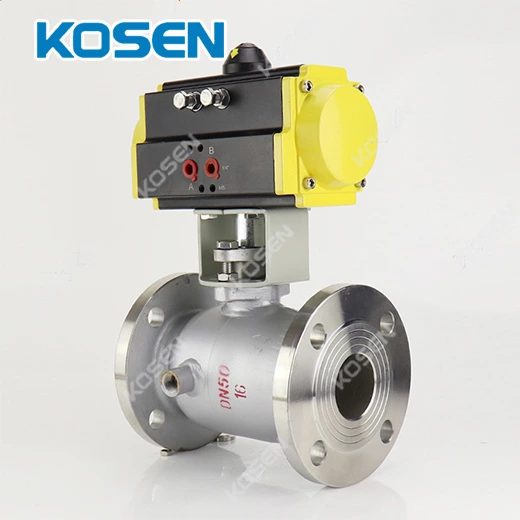

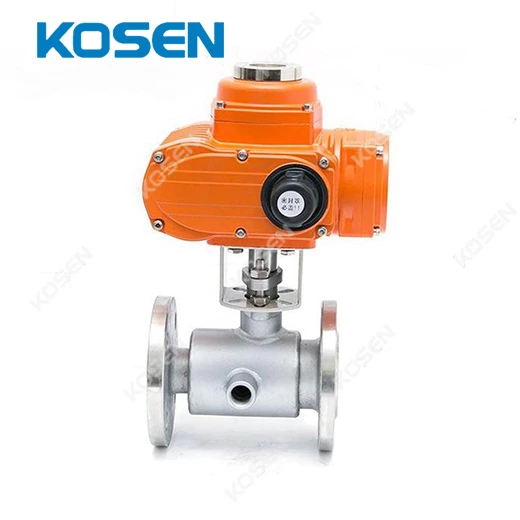

» Operation:Manual,pneumatic,electric actuator

» Applicable medium: water, steam, oil, corrosive medium, etc
