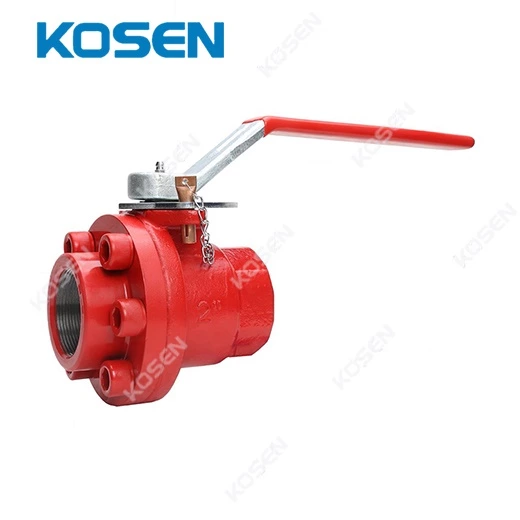

OIL FIELD CARBON STEEL BALL VALVE BOLTED

Product Description

This is a ball valve for oil field, including a ball valve body and a valve tube. The left and right sides of the ball valve body are equipped with valve tubes. The right side of the inner cavity of the ball valve body is equipped with a second slide rail. The valve rod runs through the ball valve body. A stable block is installed at the top of the valve rod, a handwheel is fixedly installed at the top of the stable block, and a limit device is installed in the inner cavity of the valve rod.

Structural Features

Back-seated stem blow out proof and fire safe

External stem lubrication and vented weather seal

SS trim for maximum corrosion protection

Available in both full and reduced port configurations

Ball includes pressure equalization hole to prevent

trapped pressure in the body cavity

Standard locking handle to meet safety and security

concerns with double locking feature for tank valves

NACE MR0175

lnspection and Test:API598

2500,3000 psi body with WCB material. 2RP,

2FP,3FP 5000 psi body with 4C material

Materials of main parts

Dimensions(in)
